AMD Confirms Next-Generation Ryzen Threadripper TR6 "Mustang Peak" Platform

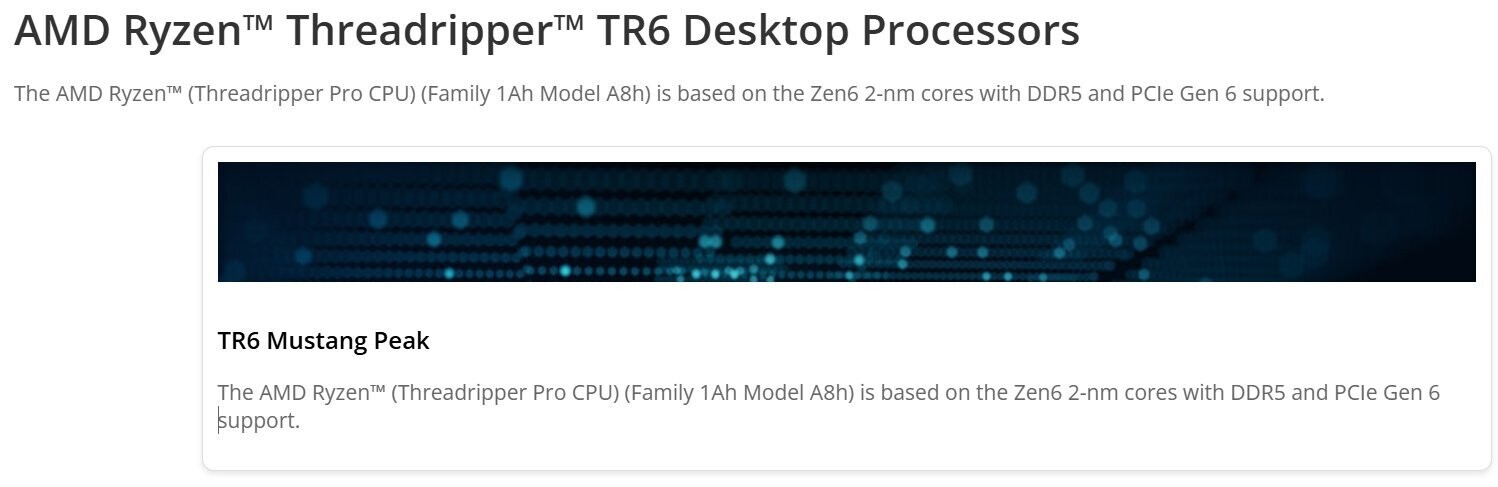

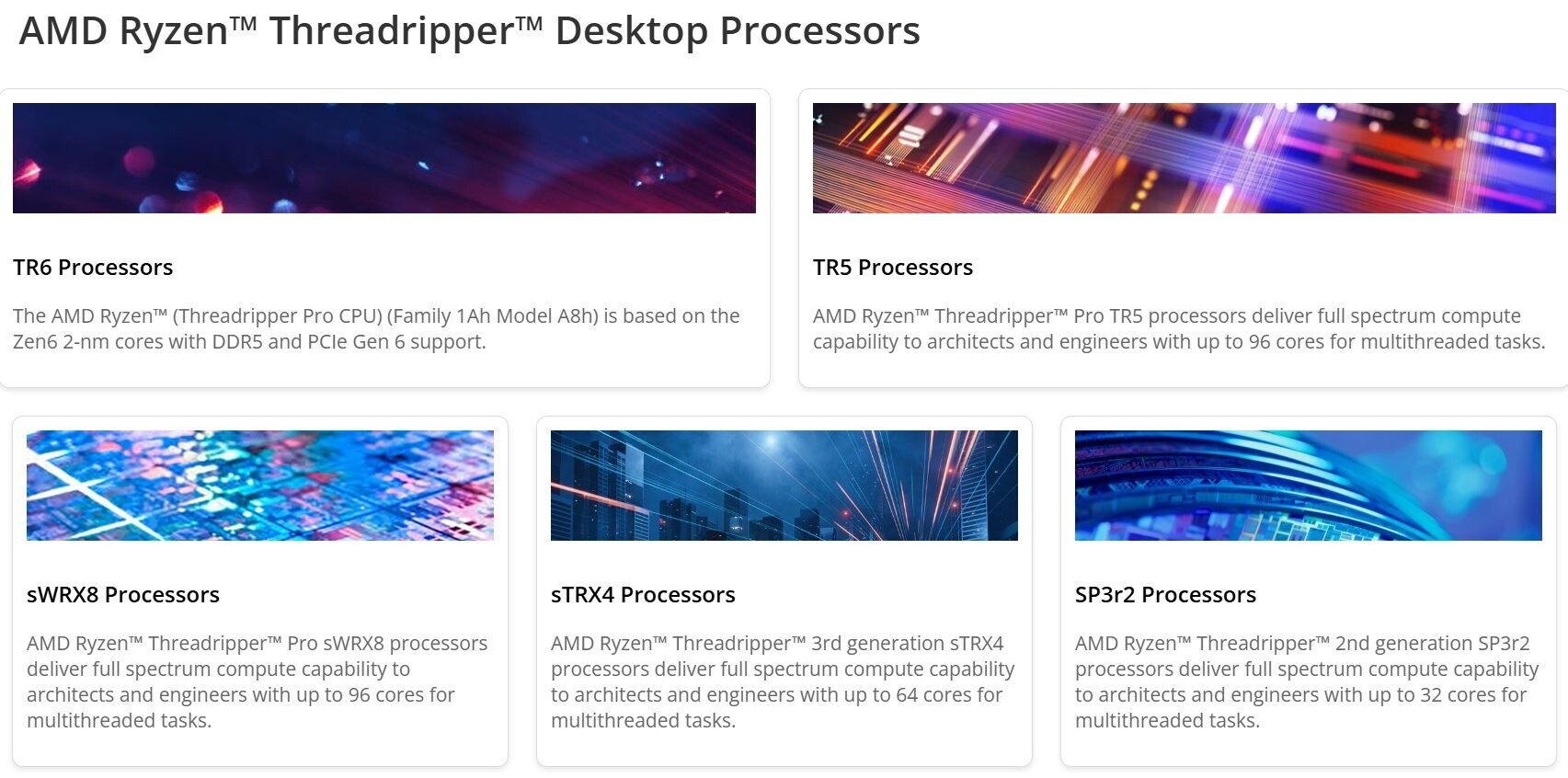

AMD has officially confirmed the upcoming Ryzen Threadripper TR6 "Mustang Peak" platform through its documentation portal, revealing key details about its next-generation workstation CPUs. The new platform is built on the advanced "Zen 6" CPU architecture and is set to deliver significant improvements in performance and connectivity for high-end desktop and workstation users.
Zen 6 Architecture and Advanced Manufacturing
The Ryzen Threadripper TR6 series will leverage the "Zen 6" CPU cores, manufactured using TSMC's cutting-edge 2 nm semiconductor process. This transition to a smaller node is expected to enable higher core counts and improved efficiency compared to the previous "Zen 5" generation. While AMD has not yet disclosed specific details such as TDP, clock speeds, or exact core counts, the move to 2 nm technology and architectural enhancements signal a substantial leap in processing power for professional workloads.
Support for PCIe 6.0 and DDR5
One of the standout features of the TR6 "Mustang Peak" platform is support for PCIe 6.0, which doubles the bandwidth per lane compared to PCIe 5.0. This advancement is crucial for data-intensive applications, enabling faster communication between the CPU, GPUs, and storage devices. The platform will also support DDR5 memory, further boosting data transfer rates and overall system responsiveness.
New TR6 Socket and Increased Pin Count
To accommodate the increased bandwidth and power requirements of PCIe 6.0 and higher core counts, AMD is introducing a new TR6 socket, replacing the previous TR5 socket. The TR5 socket featured 4,844 pins, but the TR6 socket is expected to surpass this number to handle the demands of the new platform. The additional pins will provide the necessary electrical capacity and connectivity for the enhanced features of the TR6 series.
Potential for Higher Core Counts
Leaked information suggests that "Zen 6" architecture will increase the core density to 12 cores per Core Complex Die (CCD), up from the 8 cores per CCD found in "Zen 5" non-dense configurations. If AMD maintains the maximum configuration of 12 CCDs, the TR6 platform could offer up to 144 cores and 288 threads—representing a 50% increase over the current flagship Ryzen Threadripper 9995WX, which features 96 cores and 192 threads. This dramatic boost in core and thread count positions the TR6 platform as a powerhouse for demanding workstation and content creation tasks.
Release Timeline and Platform Segmentation
While AMD has not provided a specific launch date for the Ryzen Threadripper TR6 "Mustang Peak" platform, documentation indicates that the release is still several months away. Industry expectations suggest that AMD will first introduce "Zen 6" CPUs in the server market with EPYC SKUs, followed by consumer Ryzen processors, and finally the high-end desktop (HEDT) Threadripper lineup.
The confirmation of the TR6 "Mustang Peak" platform underscores AMD's commitment to pushing the boundaries of workstation performance, with innovations in CPU architecture, I/O standards, and platform design. As more details emerge, the next-generation Ryzen Threadripper series is poised to set new benchmarks for professional computing.
