Add More High-Performance Storage with the Sabrent Quad NVMe SSD to PCIe 4.0 x16 Card

The Sabrent Quad NVMe SSD to PCIe 4.0 x16 Card (EC-P4BF) is the perfect solution for desktops that require additional high-performance storage. With this adapter, you can add up to four NVMe SSDs with a single physical x16 PCIe slot. However, a bifurcation setting in the BIOS is required to use more than one drive. Only M.2 M key SSDs are supported, but older and newer generation SSDs in the 2230/2242/2260/2280 form factors will work at up to PCIe 4.0 speeds. The adapter is also backward compatible with PCIe 3.0/2.0 slots. You can access drives individually or place them into a RAID via Intel VROC, AMD Ryzen NVMe RAID, UEFI RAID, or software-based RAID through Windows Storage Spaces when respective criteria are met.

Built for High-Performance Environments

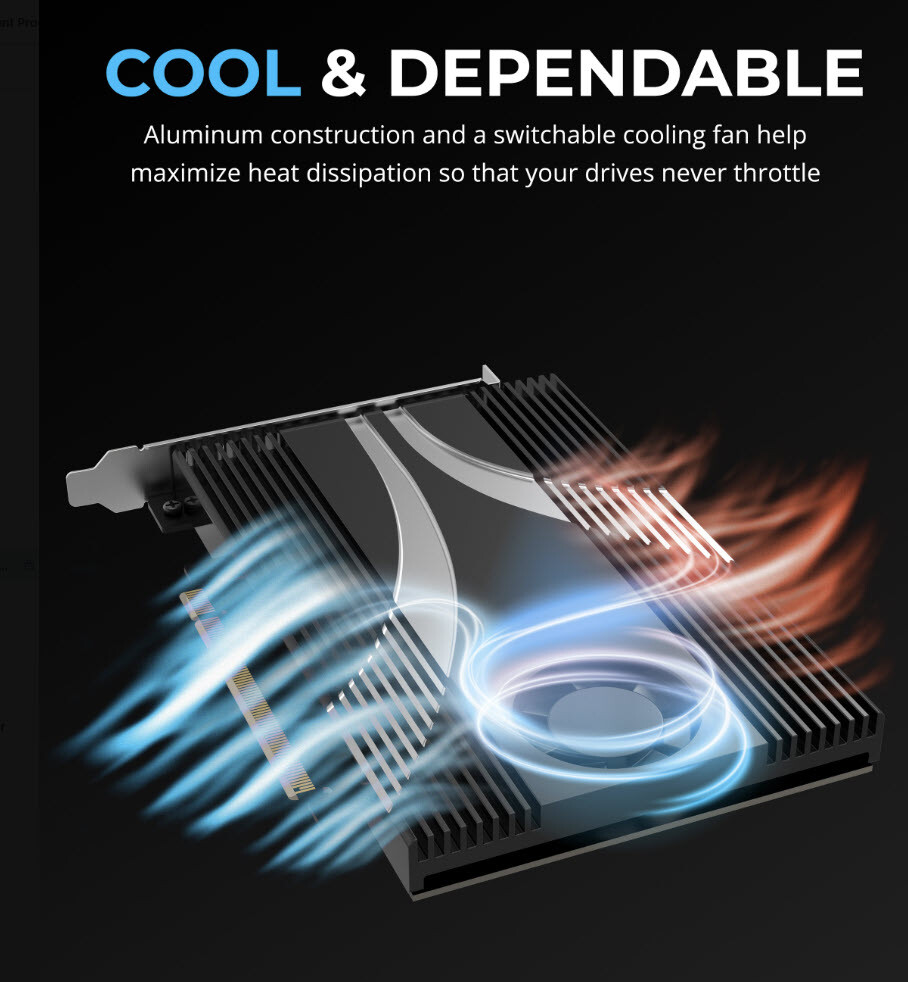

High-performance drives and systems may require high-end cooling, and this adapter has you covered. It's constructed out of aluminum material for physical stability and improved heat dissipation. It also includes thermal padding for all four SSDs to keep things cool and in place. Active cooling for high-performance environments is optional with a switchable fan. The adapter is plug-and-play with driverless operation. Rear-mounted LEDs quickly show the drive status for a quick visual update. The host must support PCIe bifurcation (lane splitting) to access more than one drive, so be sure to check your motherboard's manual ahead of time.

More Storage

Add up to four high-performance NVMe SSDs to a system with a single adapter in a physical x16 PCIe slot with the Quad NVMe SSD to PCIe 4.0 x16 Card (EC-P4BF). The system requires the PCIe bifurcation (lane splitting) function to add more than one SSD with the full 16 lanes required for 3 or 4 drives.

PCIe 4.0 Compliant

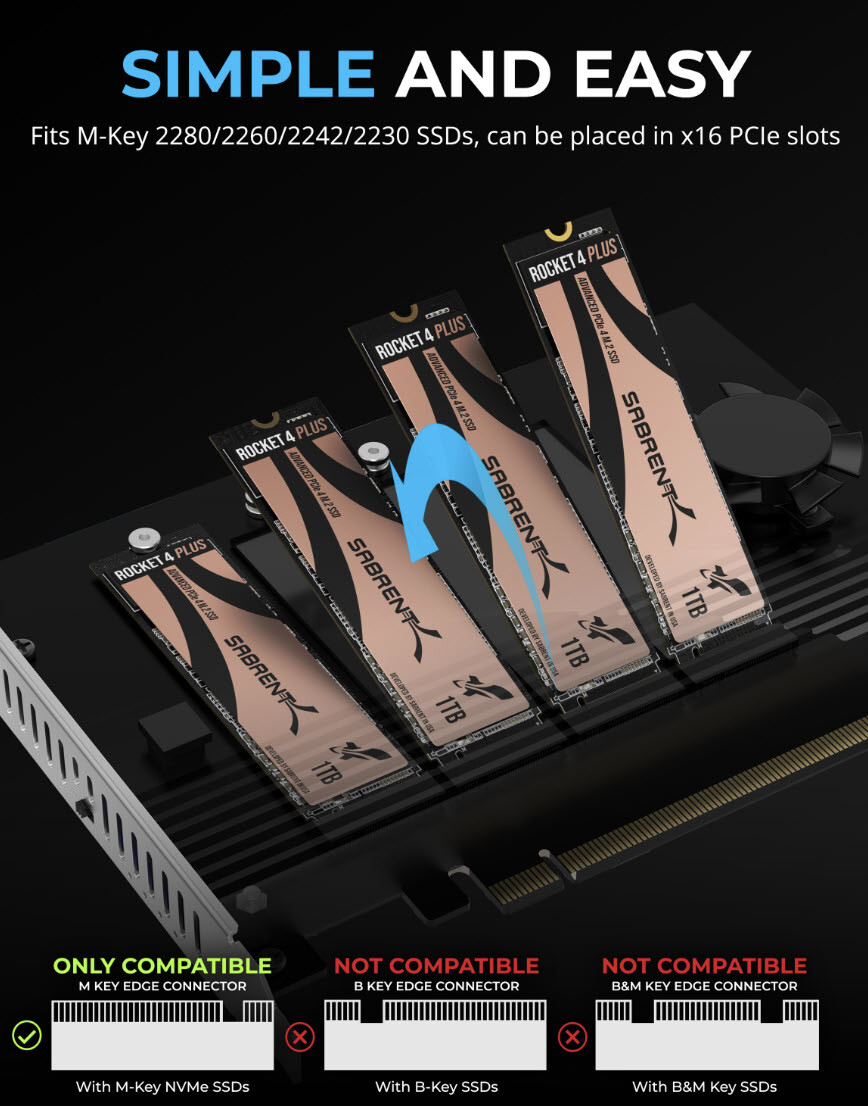

The Sabrent Quad NVMe SSD to PCIe 4.0 x16 Card supports even the fastest PCIe 4.0 SSDs but also works with older and newer generation SSDs at up to 4.0 speeds. It works in older 3.0/2.0 systems that have PCIe bifurcation support. Compatible with NVMe SSDs in the M.2 2230/2242/2260/2280 form factors for your convenience.

Supported By Sabrent

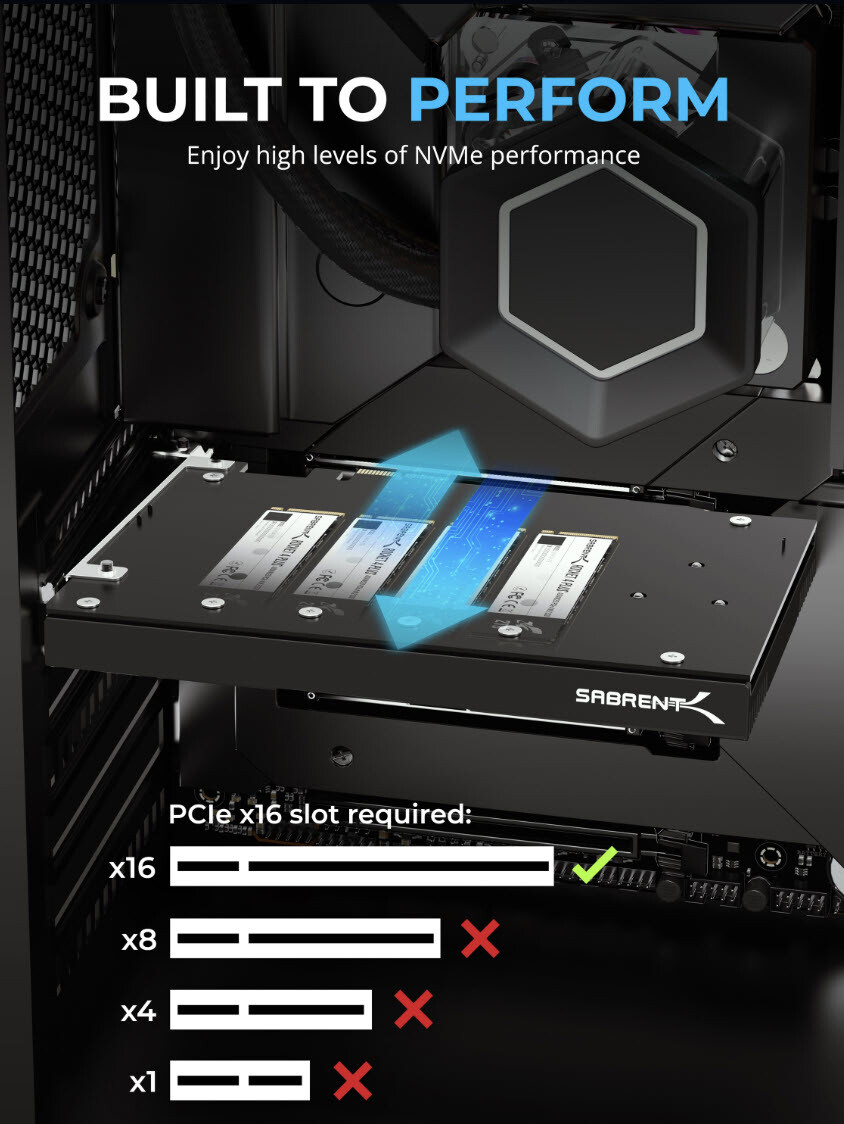

This card requires M.2 M key NVMe SSDs and UEFI PCIe bifurcation support to work properly. The destination PCIe slot must be x16 in physical length. Please visit sabrent.com for more information and contact our technical support team for assistance. The SABRENT Quad NVMe SSD to PCIe 4.0 x16 Card (EC-P4BF) is on sale now at Amazon.
