AMD Ryzen 7000X3D Processors Prone to Irreversible Damage from Overclocking

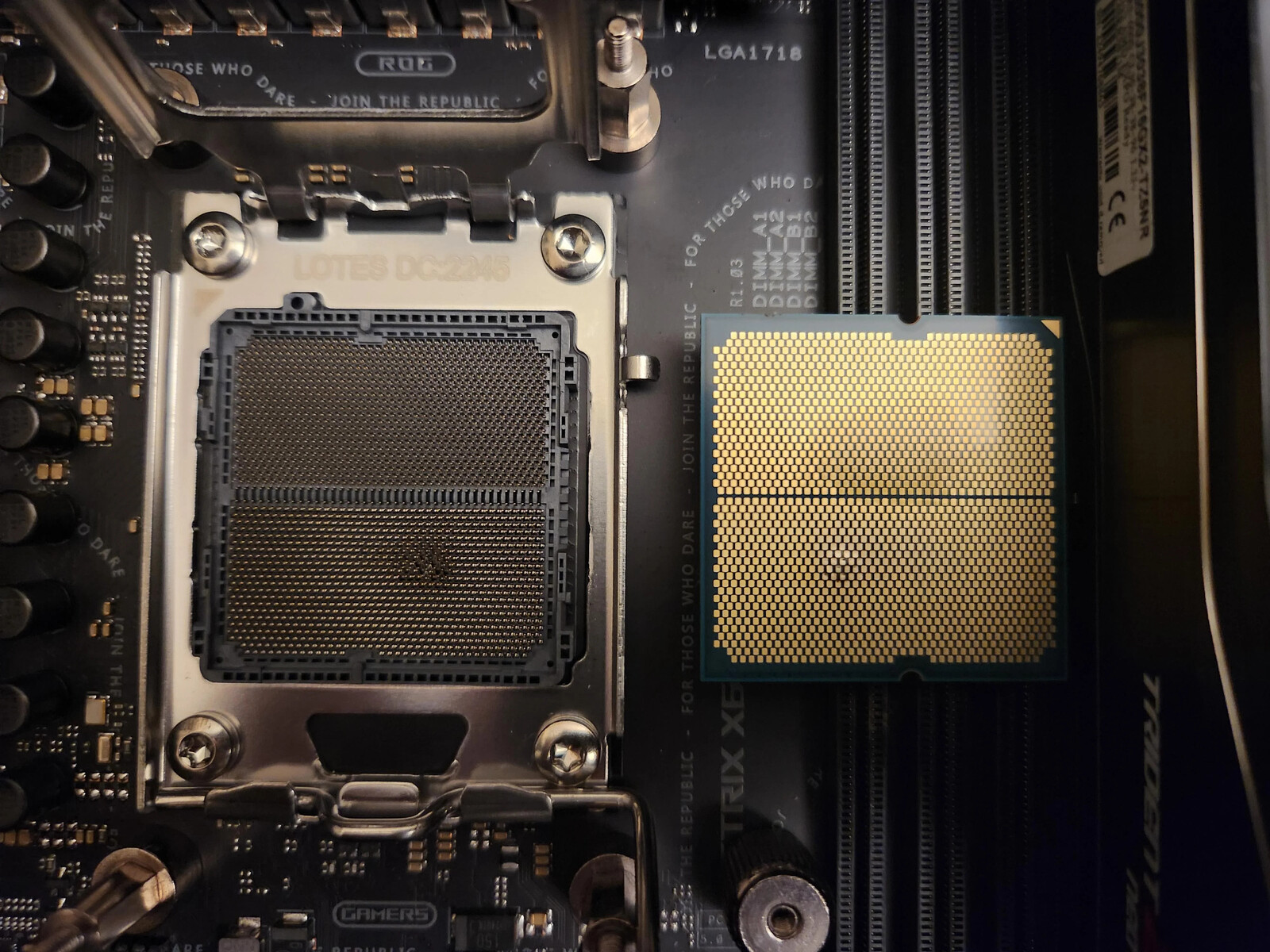

Overclocking AMD Ryzen 7000X3D processors can lead to irreversible physical damage, particularly at higher VDDCR voltages. Redditor Speedrookie attempted to overclock their Ryzen 7 7800X3D, resulting in an irreversible failure. The motherboard socket and processor's land-grid contacts showed signs of overheating damage caused by the contacts melting due to too much current drawn.

The Ryzen 7000X3D processor features a CPU complex die (CCD) with stacked 3D Vertical Cache memory. This cache die is located in the central region over the CCD where its 32 MB on-die L3 cache is located. The difference in Z-height of the stacked die is filled up by structural silicon, which sits over the regions of the CCD with the 8 "Zen 4" CPU cores. The CCD itself has a higher power-draw at any given clock-speed than a conventional CCD, making overclocking capabilities almost non-existent and the processor's power limits generally lower than their regular Ryzen 7000X counterparts.

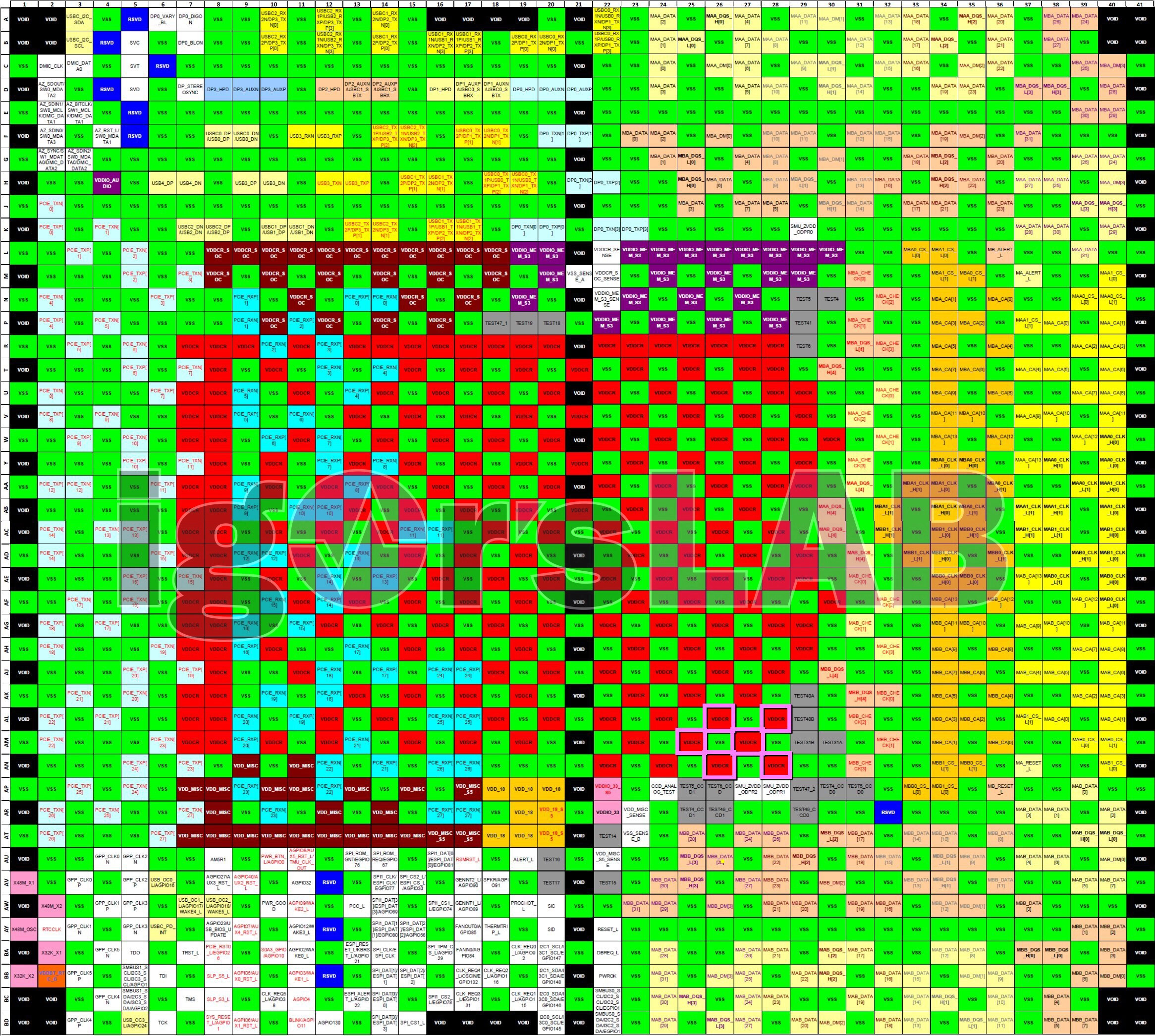

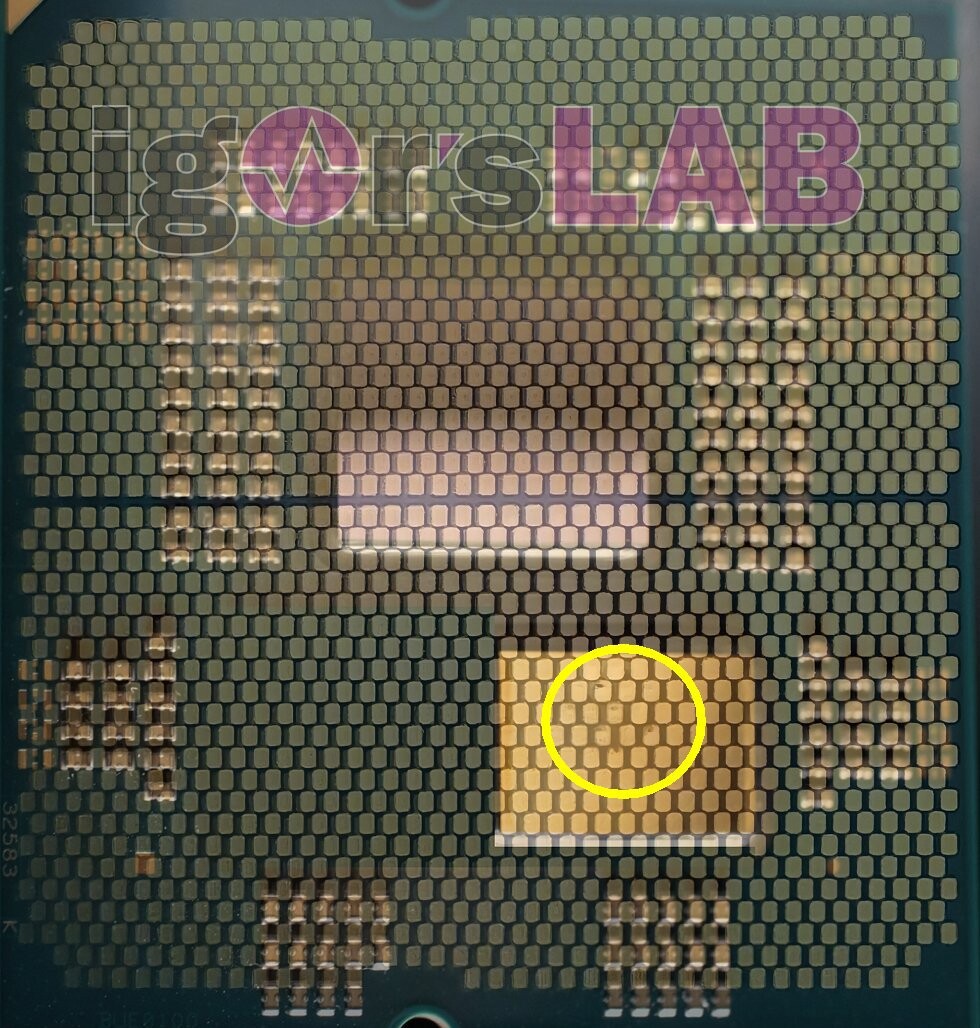

Igor's Lab posted a detailed analysis of the region of the Socket AM5 land-grid most susceptible to burn-out in the above scenario. The central region of the LGA has 93 pins dedicated to the VDDCR power domain, dispersed in a mostly checkered pattern, toward the center of the land-grid. Igor isolated 6 of these VDDCR pins in particular, which are most prone to physical damage, as they are located in a region below the CCD that sees it sandwiched between the L3D and the fiberglass substrate below. AMD's thermal and electrical protection mechanisms aren't able to prevent a runaway overheating of the pins that causes the substrate to melt, deform, and bulge outward, resulting in irreversible damage to both the processor and the socket.

AMD's motherboard partners are releasing UEFI BIOS updates for their entire lineups of motherboards, which enforce tighter limits on the VDDCR voltage. MSI is the first motherboard manufacturer with such updates. MSI has redesigned automated overclocking for 7000X3D processors, supporting only negative offset voltage settings, which can reduce the CPU voltage only. MSI Center restricts any direct voltage and frequency adjustments, ensuring that the CPU won't be damaged due to over-voltage. The update introduces an automated overclocking feature called Enhanced Mode Boost, which optimizes PBO settings to improve boost frequency residency, without any manual voltage adjustments.
